Using AI To Help You Understand A Topic

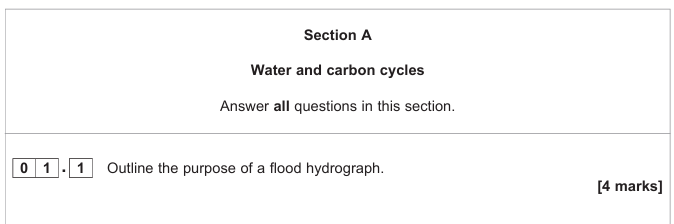

I was looking through an A-level geography exam paper recently and came across this question:

I’ll be honest—I didn’t know the answer. I had a vague idea it was something to do with rivers and floods, but that’s about it. So I did what many students might do: I typed the question into ChatGPT.

“Outline the purpose of a flood hydrograph.”

---

ChatGPT Response

The purpose of a flood hydrograph is to show how a river’s discharge (flow) changes over time in response to a rainfall event. It helps hydrologists, planners, and emergency services understand and manage the impacts of flooding. Specifically, it serves the following purposes:

1. Visualize River Response to Rainfall

• Shows how quickly and how much river flow increases after rainfall.
• Indicates the lag time (delay) between peak rainfall and peak discharge.

2. Assess Flood Risk

• Helps identify how likely and how severe flooding might be in a given area.
• A steep rising limb may indicate a flash flood risk.

3. Compare Different Catchments

• Different hydrograph shapes reflect how land use, geology, and topography affect flood response.
• Urban areas typically have shorter lag times and higher peak discharge.

4. Inform Flood Management and Planning

• Used to design flood defenses (like levees and reservoirs).
• Helps emergency services prepare for flood events.

5. Aid in Hydrological Modeling

• Provides data for simulations of future flood scenarios.
• Used in planning infrastructure like bridges, culverts, and drainage systems.

In summary, a flood hydrograph is a vital tool for understanding how rivers react to rainfall, assessing flood risks, and planning appropriate responses and infrastructure.

---

What I thought of the response:

Yes, I got a perfectly accurate answer. But I didn’t really understand it. The words were there, but the meaning didn’t stick. I couldn’t picture how it worked in real life, why it mattered, or how it might show up outside of an exam paper.

So I decided to take a different approach: I treated AI not as a shortcut, but as a study partner. I started asking more questions—simple ones, detailed ones, curious ones. I asked for examples. I asked how it was used in the real world. I even asked if it had been mentioned in the news.

And what happened? The topic came alive.

This post is a step-by-step look at that conversation. I want to show you how students can use AI to go beyond flat definitions and instead build real understanding—the kind that sticks, connects to the real world, and actually prepares you for more than just exams.

ChatGPT response:

Sure! Let’s take each of those step by step:

✅ What exactly is a flood hydrograph? (In simple terms)

A flood hydrograph is a type of graph that shows how the flow of a river (or stream) changes over time after a period of rainfall.

It usually shows:

• How quickly water reaches the river
• How high the river level gets
• How long it takes to return to normal

It helps us visualise the timing and size of a flood after heavy rain.

🧑‍🔬 Who compiles them?

Flood hydrographs are typically compiled by:

• Environmental agencies (like the Environment Agency in the UK)
• Hydrologists (scientists who study water)
• Civil engineers working on flood prevention
• Researchers and students in geography or environmental science

🧪 How are they compiled?

They’re created using data collected from river monitoring stations, which track:

• Rainfall levels over time
• River discharge (how much water is flowing past a certain point)
• Time intervals (often in hours)

This data is then plotted on a graph:

• X-axis: time
• Y-axis: river discharge (volume of water)

The resulting curve shows how the river responds to the rain.

🌍 What real-world uses do they have?

Flood hydrographs are hugely important in real-world situations:

• Flood risk planning – Local councils and emergency planners use them to predict how quickly rivers might flood after rain.
• Urban development – Engineers use them when designing roads, drains, or buildings to avoid flood-prone areas.
• Emergency response – They help responders know when flooding might peak and where it could hit hardest.
• Environmental studies – Used to understand how different landscapes affect flood response (e.g. forests vs. concrete cities).

📈 What do they look like?

They usually look like a curved line on a graph. The key parts of the graph are:

• Rising limb – how quickly the river level goes up after rain starts
• Peak discharge – the highest point on the graph (the most water in the river)
• Falling limb – how the river level goes back down again
• Lag time – the delay between rainfall and peak discharge

Here’s a simple sketch-style description:

        Peak
         /\
        /  \
       /    \      ← Discharge (Y-axis)
      /      \
     /        \
    ------------------→ Time (X-axis)
         ^
     Rainfall happens here

Some graphs also show rainfall as bars beneath the curve, to show the timing relationship between the rain and the river response.

ChatGPT response:

Excellent question — you’re absolutely right that the shape of a flood hydrograph varies based on many different factors. Let’s break it down:

🧭 What influences the shape of a hydrograph?

Here are some of the main factors:

• Size of the drainage basin – Larger basins usually respond more slowly, leading to a flatter graph.
• Land use – Urban areas with lots of concrete have faster runoff (steep rising limb); forests absorb more water (gentler slope).
• Soil type – Permeable soils (like sand) absorb more water = slower response; impermeable soils (like clay) = faster runoff.
• Slope of the land – Steeper slopes lead to faster water flow into rivers.
• Vegetation – More plants = slower runoff (they intercept rain and improve infiltration).
• Rainfall intensity and duration – Heavy, short rainfall = sharp peak; light, prolonged rain = flatter curve.

So yes — every hydrograph will look slightly different, even for the same river, depending on these conditions.

🔁 Do hydrographs stay static over time?

No—they can change. While a river’s physical shape doesn’t change quickly, the hydrograph for the same river can vary over time because:

• Weather patterns vary (e.g. some storms are more intense than others).
• Seasons matter (e.g. frozen ground in winter = more runoff).
• Human activity changes (e.g. more buildings = less absorption).
• Climate change can increase storm frequency and intensity.
• Land use changes (e.g. deforestation or reforestation) can alter runoff rates.

In short: a hydrograph is like a snapshot of how a river reacts to a specific rainfall event, under specific conditions. It can—and often does—look different next time.

ChatGPT response:

Yes, you’re absolutely right—hydrograph data is part of an ongoing monitoring system in many parts of the world.

📡 Are rivers constantly monitored?

Yes! Many countries have permanent river gauging stations that record:

• Discharge (flow of water)
• River level (height)
• Often at 15-minute to hourly intervals, 24/7

In the UK, for example, the Environment Agency operates hundreds of river monitoring stations. These data points are used to:

• Track long-term river behaviour
• Detect unusual flow patterns (e.g. rising flood risk)
• Provide real-time warnings to the public
• Feed into forecasting models

🌧 Is rainfall recorded too?

Yes. Rain gauges are also widely distributed and often located near river stations to allow comparison.

In a typical flood hydrograph diagram, you’ll often see:

• Rainfall shown as vertical bars (usually at the bottom of the graph)
• Discharge shown as a curve (rising and falling over time)

This visual comparison is key. It lets hydrologists see:

• How much rain fell
• How long it took to affect the river
• How high the river peaked
• How quickly it returned to normal

This is called lag time, and it’s a crucial concept for flood forecasting and emergency planning.

📊 So yes — hydrographs can be live, continuous records.

Although the term “flood hydrograph” often refers to a graph for one event, the data behind it is continuously collected, archived, and used in both short-term (e.g. storm response) and long-term (e.g. climate studies) planning.

Would you like me to find some examples of actual hydrograph data online? Or perhaps show you how this data is used in flood warning systems?

ChatGPT response:

That’s an excellent summary! You’ve covered the essentials very well. Here are a few additional points you might consider adding to strengthen your answer:

📊 1. Helps compare different events or locations

Hydrographs allow you to compare how different rainfall events affect the same river, or how different rivers respond to similar amounts of rain. This helps identify:

• Areas with higher flood risk
• Rivers that respond more rapidly (i.e., are more “flashy”)

🏗 2. Supports infrastructure design

Engineers use hydrograph data when designing:

• Flood defences (e.g. levees, flood walls)
• Drainage systems and urban planning (e.g. sustainable drainage in cities)
• Dams and reservoirs, to control or store excess flow

🧪 3. Useful in environmental research

Hydrographs can help study the impact of climate change, deforestation, or urban development over time. For example:

• Is the lag time shortening over the years?
• Is peak discharge getting higher after similar rainfall?

🚨 4. Essential for early warning systems

Real-time hydrograph monitoring helps trigger flood alerts and warnings, giving people time to prepare or evacuate. In this sense, hydrographs are not just academic—they can literally help save lives.

🧠 Final tip for the exam:

Since the question was about the purpose of a flood hydrograph, structure your answer to show both:

• What it shows
• What it’s used for

You’re already doing this very well, but emphasising the practical applications alongside the scientific features will earn top marks.

ChatGPT response:

Certainly! Here’s a summary of the key points we’ve covered about flood hydrographs:

💧 What is a Flood Hydrograph?

• A flood hydrograph is a graph showing how river discharge changes over time following a rainfall event.
• It typically plots time on the x-axis and discharge (river flow) on the y-axis.
• It helps us understand how quickly and intensely a river responds to rain.

🧭 Key Features of a Hydrograph

• Rising limb – how fast the river level increases.
• Peak discharge – the highest flow point.
• Falling limb – how the flow returns to normal.
• Lag time – the delay between peak rainfall and peak discharge.
• The shape of the hydrograph is influenced by many factors, including:
  • Basin size
  • Soil type
  • Land use (urban vs. rural)
  • Slope
  • Vegetation
  • Rainfall intensity

🔁 Are Hydrographs Static?

• No — they vary with each rainfall event and environmental condition.
• Even for the same river, hydrographs can look different depending on the weather, season, and human impact.

📡 Monitoring and Data

• Hydrographs are based on real-time data from river monitoring stations.
• Discharge and rainfall are both measured continuously.
• Agencies like the Environment Agency (UK) collect and publish this data.

🏗 Real-World Uses

Flood hydrographs are used for:

• Flood forecasting and emergency planning
• Designing flood defences and urban drainage systems
• Tracking the impact of land use or climate change
• Comparing river behaviour across locations or time
• Feeding into early warning systems to protect lives and property

🧾 Exam Answer Summary (Purpose of a Flood Hydrograph)

• To show how a river responds to rainfall over time.
• To analyse and predict flooding patterns.
• To inform flood risk management and infrastructure design.
• To assess how natural and human factors influence river behaviour.

---

Conclusion: The Power of Questioning

As you’ve seen in this post, simply asking “What is a flood hydrograph?” gives you a basic definition—but not much else. It’s only by going deeper, asking follow-up questions, and exploring real-world applications that the topic truly starts to make sense.

Using AI like ChatGPT as a study partner, not just a dictionary, is one of the smartest ways to learn. It’s in the back-and-forth—the why, how, and what if—that understanding happens. You’re not just memorising facts; you’re building knowledge that connects, sticks, and actually prepares you for the real world (and your exams).

📌 Just below, I’ve included a screenshot of the actual mark scheme for the exam question “Outline the purpose of a flood hydrograph.” Feel free to compare it with what we uncovered through our conversation—how close did we get?

And just for fun, I’ve also added a short YouTube video that explains hydrographs visually—well worth a couple of minutes.

Happy learning — and keep asking questions. That’s where the real learning begins.
